DETAIL




Product Properties

  1. The characteristics of bidirectional weave fabrics are that the warp and weft are interwoven in a regular pattern, that is, the warp and weft are interlaced every other single/double yarn, so there are many interlacing points, and the fabric is firm and flat. Because the carbon fiber tows have been in a state of ups and downs, there are many fiber bending points, and the elongation rate is high during the stretching process. At the same time, due to the position of the interlacing point of two adjacent warp yarns and two adjacent weft yarns, eyelets appear due to the sliding of the fiber tows. Due to the difference in reflected light from the fiber tows in the warp and weft directions, the bidirectional weave carbon fabric has a lattice-like appearance.

  2. It has strong durability and corrosion resistance, which are two commendable properties of carbon fiber reinforced cloth.

  3. High tensile strength, low weight, carbon fiber is actually much stronger than steel in terms of strength-to-weight ratio, the weight of carbon fiber is only about one-fifth of that of steel, so that is to say, under the same weight, carbon fiber The strength is about five times that of steel.

  4. Low thermal expansion, carbon fiber has a high resistance to temperature changes, which means that the carbon fiber gripper does not expand or contract at different temperatures. For this reason, it is ideal for factory or assembly line placement.

  5. High modulus

  6. Weave locked fabric, more stabilized/fixed and less flexible/elastic, so it won't create scrap in production


Technical Data

Material:

100% carbon fiber Yarn (warp): 3k carbon fiber
Pattern:  Twill Yarn (weft): 3k carbon fiber
Weight : 200gsm Width: 10-150cm
Density(warp): 5/10cm Thickness: 0.2mm
Density(weft): 5/10cm Color: Black


Technical Data

Material:

100% carbon fiber
Pattern:  Twill
Weight : 200gsm
Density(warp): 5/10cm
Density(weft): 5/10cm
Yarn Count(warp): 3k carbon fiber
Yarn Count(weft): 3k carbon fiber
Width: 10-150cm
Thickness: 0.2mm
Color Black


Product Description

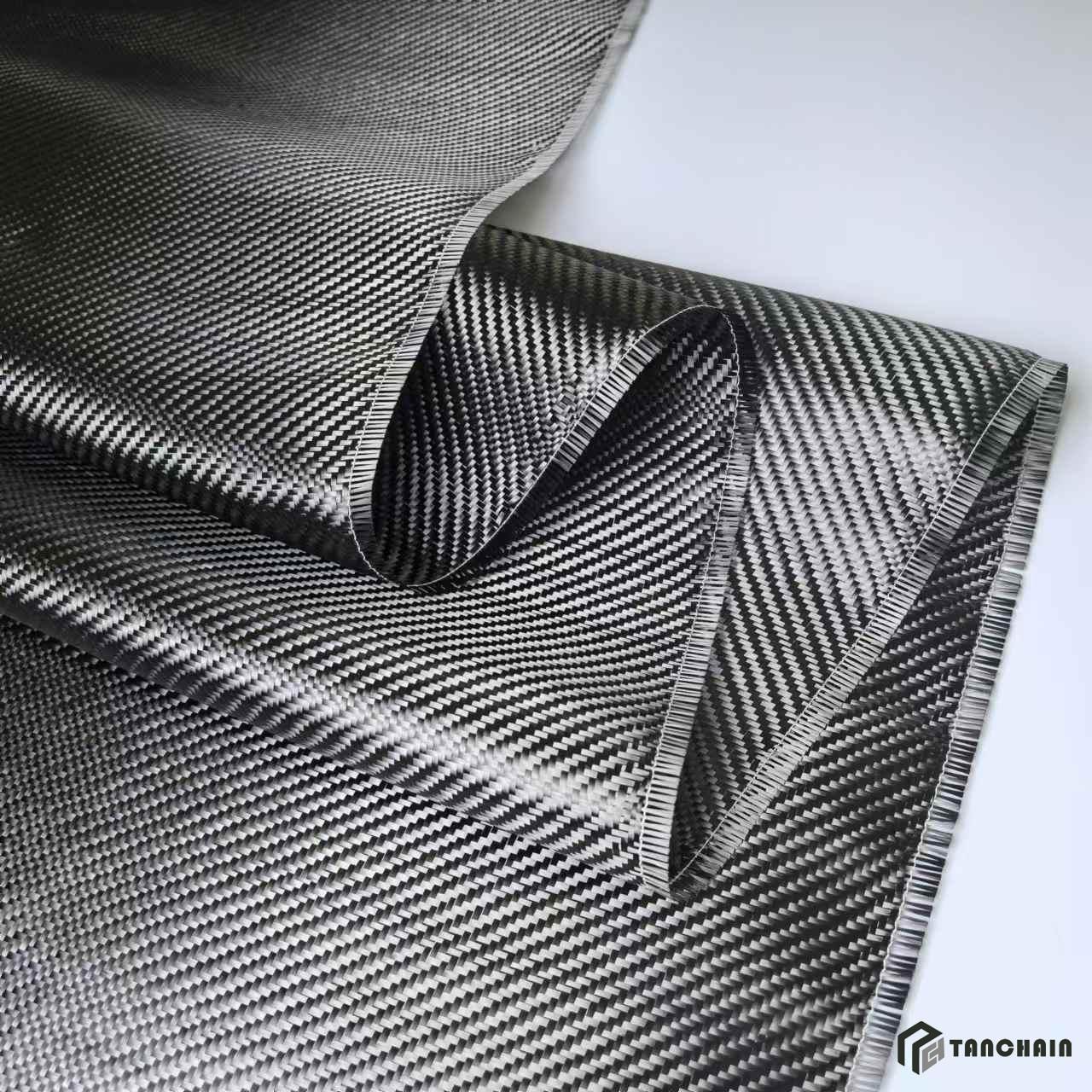

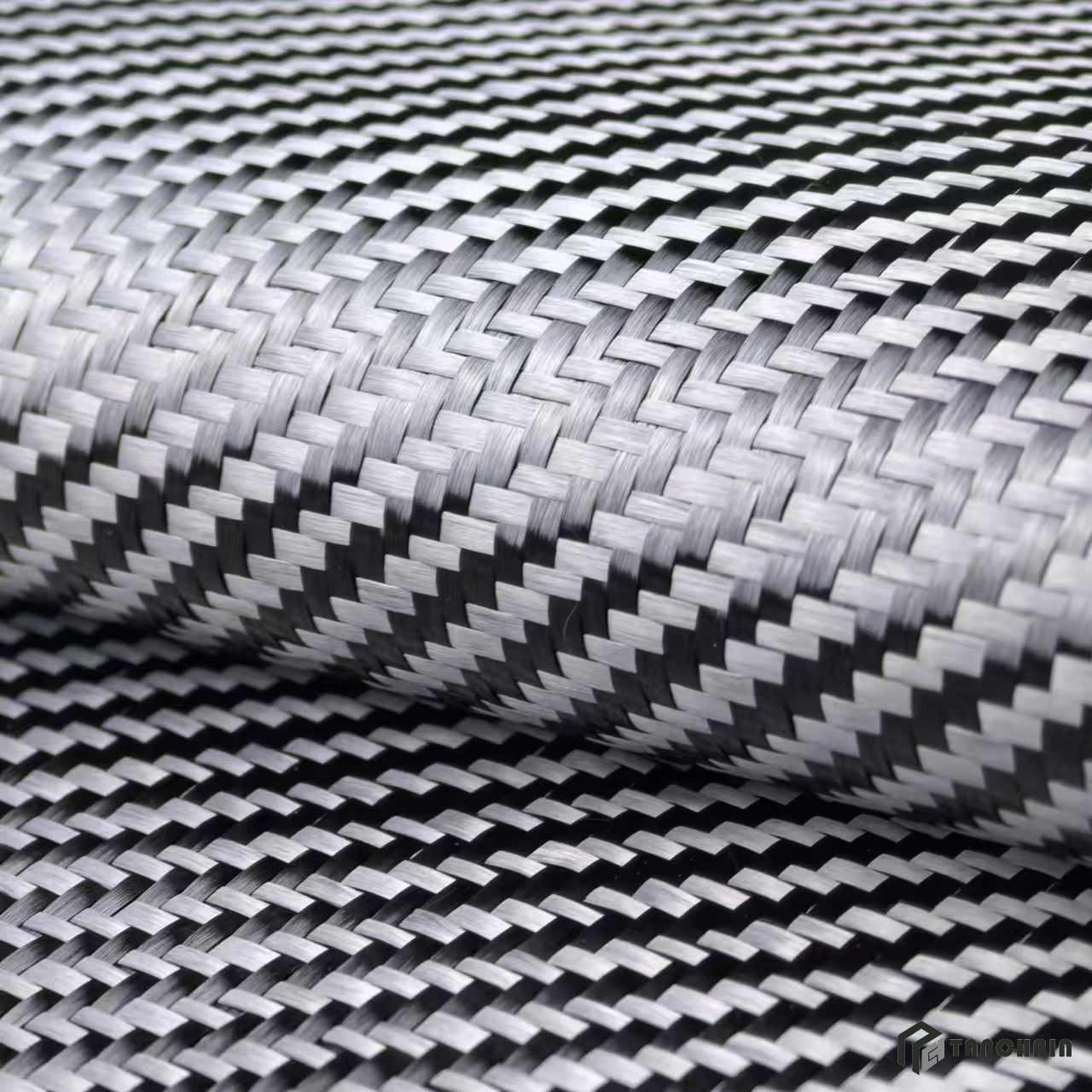

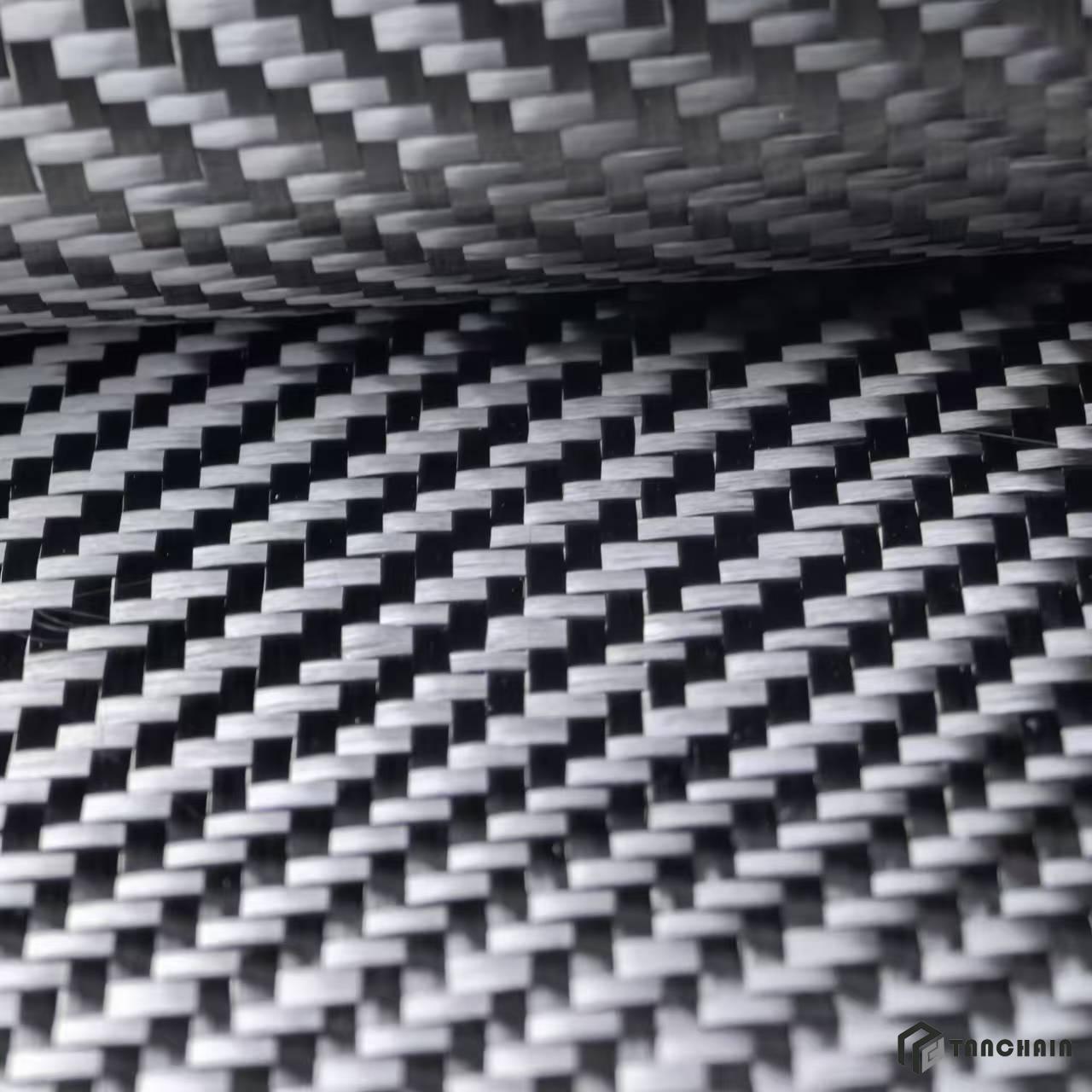

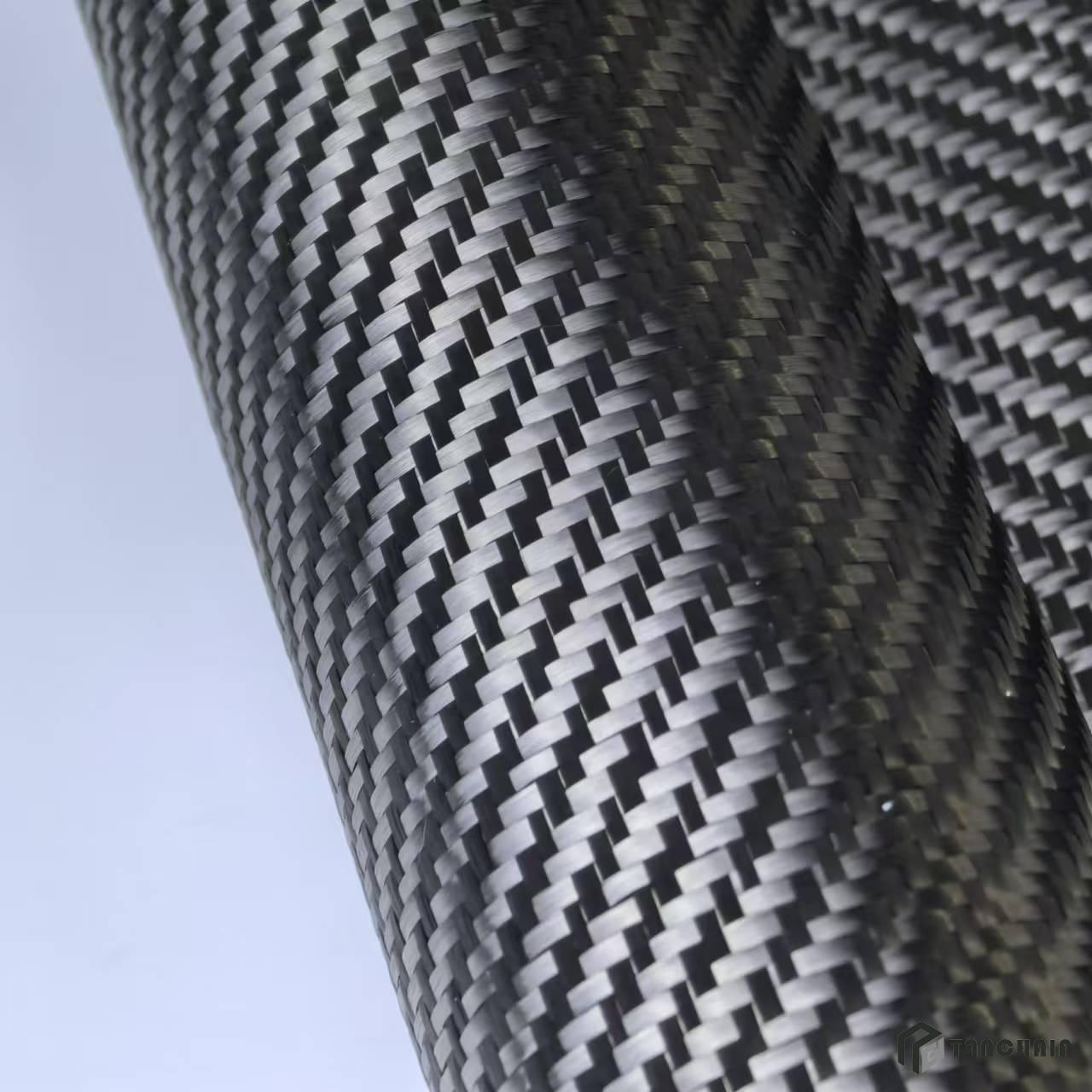

    The 5X5 twill carbon fiber cloth has an oblique pattern that has a certain angle with the arrangement direction of the carbon fiber bundle. There is no carbon fiber bundle in the direction of the pattern. The two carbon fiber bundles are staggered by one weaving position, resulting in the diagonal grain characteristics of the twill carbon fiber cloth. This twill pattern has a strong three-dimensional appearance and is used for car modification products, such as panels, hoods, exhaust pipes and pipes. reinforcement, etc.





Product Details
Content: 100% carbon fiber
Specification : 1k-12k, 120-640gsm
Color: Black
width:

10-150cm, customized width is available

Feature:

High tensile strength, high modulus, strong durability and corrosion resistance, low thermal expansion

MOQ: 100m
Meet standard : AATCC/ASTM, EN, ISO, GB, AS
Application : Used in car, trains, transportation, building reinforcement, sports equipment, aerospace

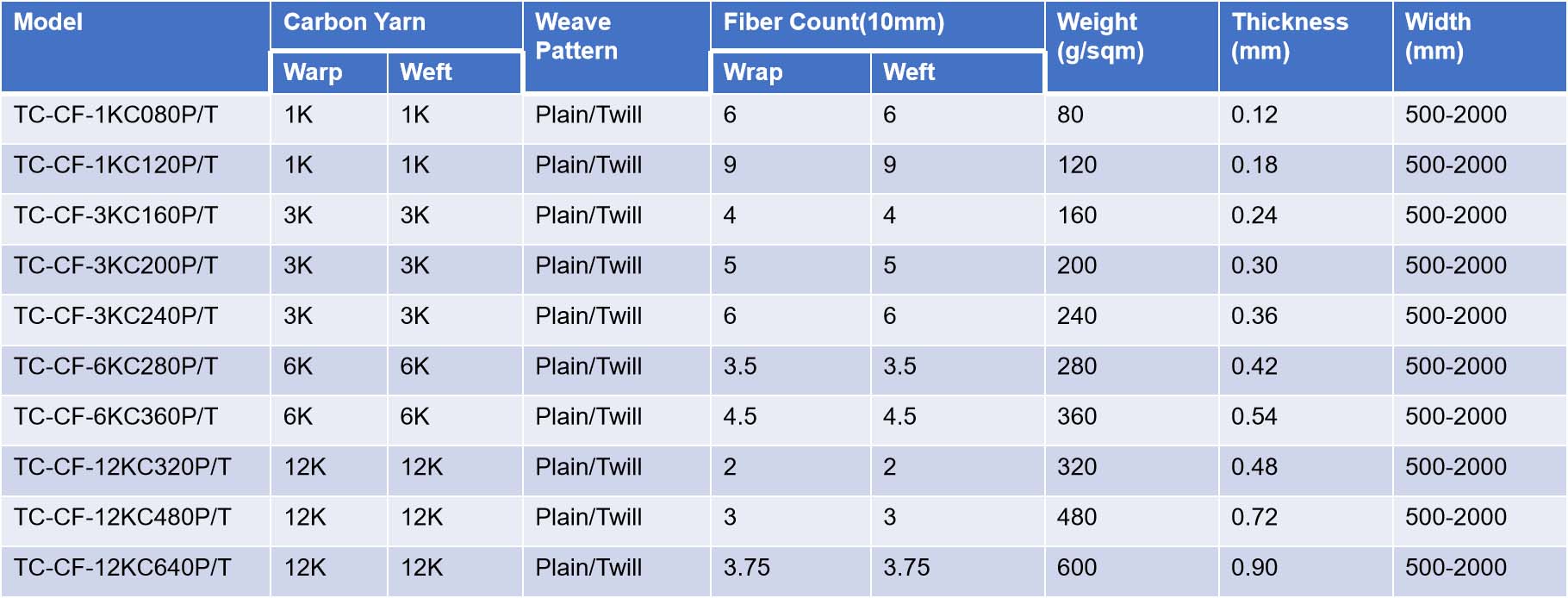

Similar Series Technical Data

carbon fabric series

Production Flow

WORKSHOP


SHIPPING

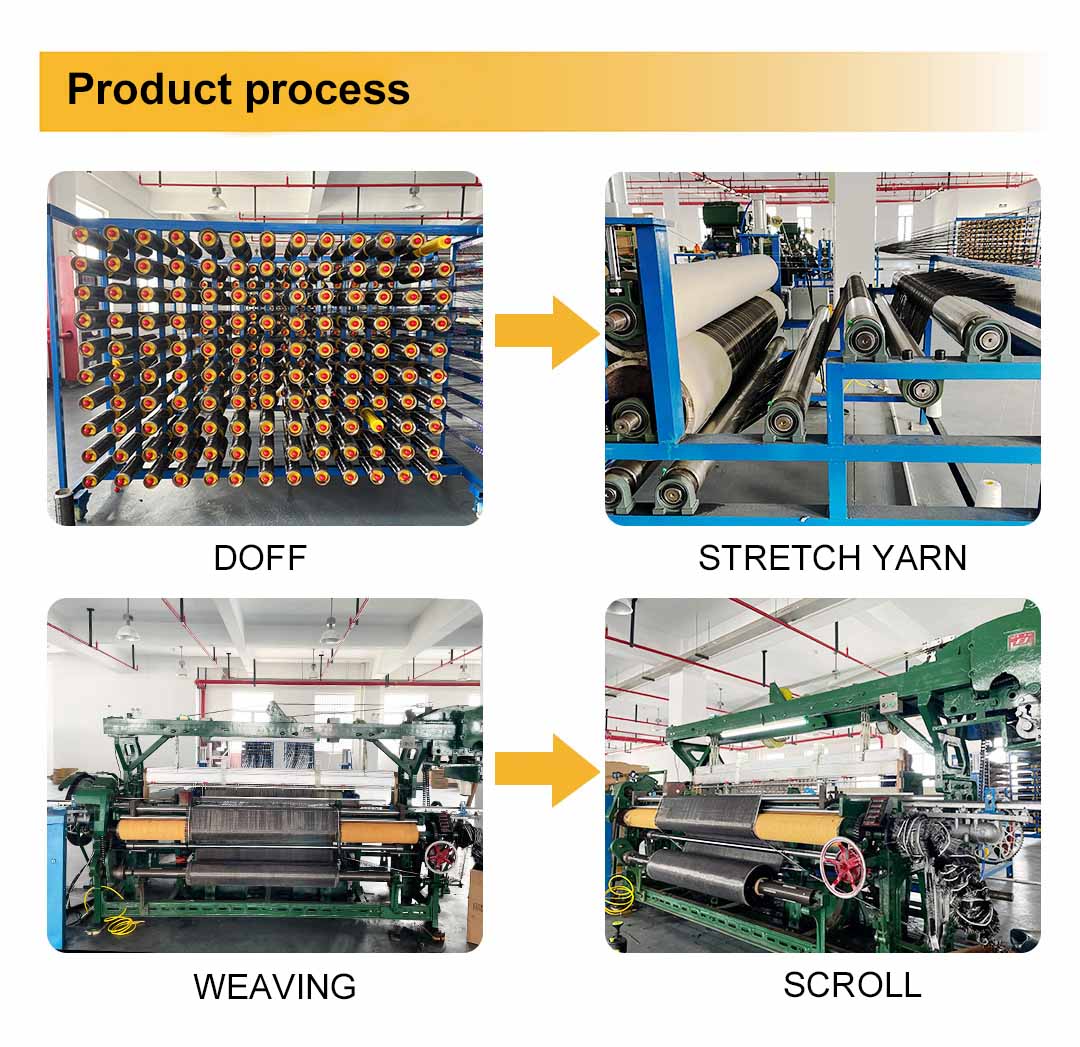

carbon fabric product process

carbon fabric category

APPLICATIONS


certifications

company partner


shipping


Q1:Are you a factory? Where are you located?

A: We are a professional manufacturer with more than 5 years production experience of composite materials, We have two factories, one in Nantong, Jiangsu, China and the other in Bangkok, Thailand.

Q2:What's the MOQ?
A: Usually 100SQM.

Q3:Package & Shipping.
A: Normal package: by carton.

Q4:When can we offer?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price pls call us or send email to us, so that we can reply you with priority.

Q5:How do you charge the sample fees?
A: If you need a samples from our stock, we can provide to you for free, but the free charge should be on your side. If you need a special size, We will charge the sample making fee which will be refund when you place an order.

Q6:What's your delivery time for production?

A: If we have stock , can delivery in 1-7 days, if without stock, need 5-30 days, depend on quantity.


Q7:What is your payment term?

A: Paypal, T/T, L/C AT sight, D/P and Western Union
