DETAIL




Product Properties

  1. It has strong durability, fatigue  and corrosion resistance, which are two commendable properties of carbon fiber reinforced cloth.

  2. High tensile strength, low weight, carbon fiber is actually much stronger than steel in terms of strength-to-weight ratio, the weight of carbon fiber is only about one-fifth of that of steel, so that is to say, under the same weight, carbon fiber The strength is about five times that of steel.

  3. Low thermal expansion, carbon fiber has a high resistance to temperature changes, which means that the carbon fiber gripper does not expand or contract at different temperatures. For this reason, it is ideal for factory or assembly line placement.

  4. High modulus

  5. High impact resistance

  6. Conductivity

  7. Flame retardant, fireproof


Technical Data

Material:

100% carbon fiber Yarn (warp): T300 3k carbon fiber
Pattern:  Satin Yarn (weft): T300 3k carbon fiber
Weight : 240gsm Width: 10-150cm
Density(warp): 6/10cm Thickness: 0.36mm
Density(weft): 6/10cm Color: Black


Technical Data

Material:

100% carbon fiber
Pattern:  Satin
Weight : 240gsm
Density(warp): 6/10cm
Density(weft): 6/10cm
Yarn Count(warp): 3k carbon fiber
Yarn Count(weft): 3k carbon fiber
Width: 10-150cm
Thickness: 0.36mm
Color Black


Product Description

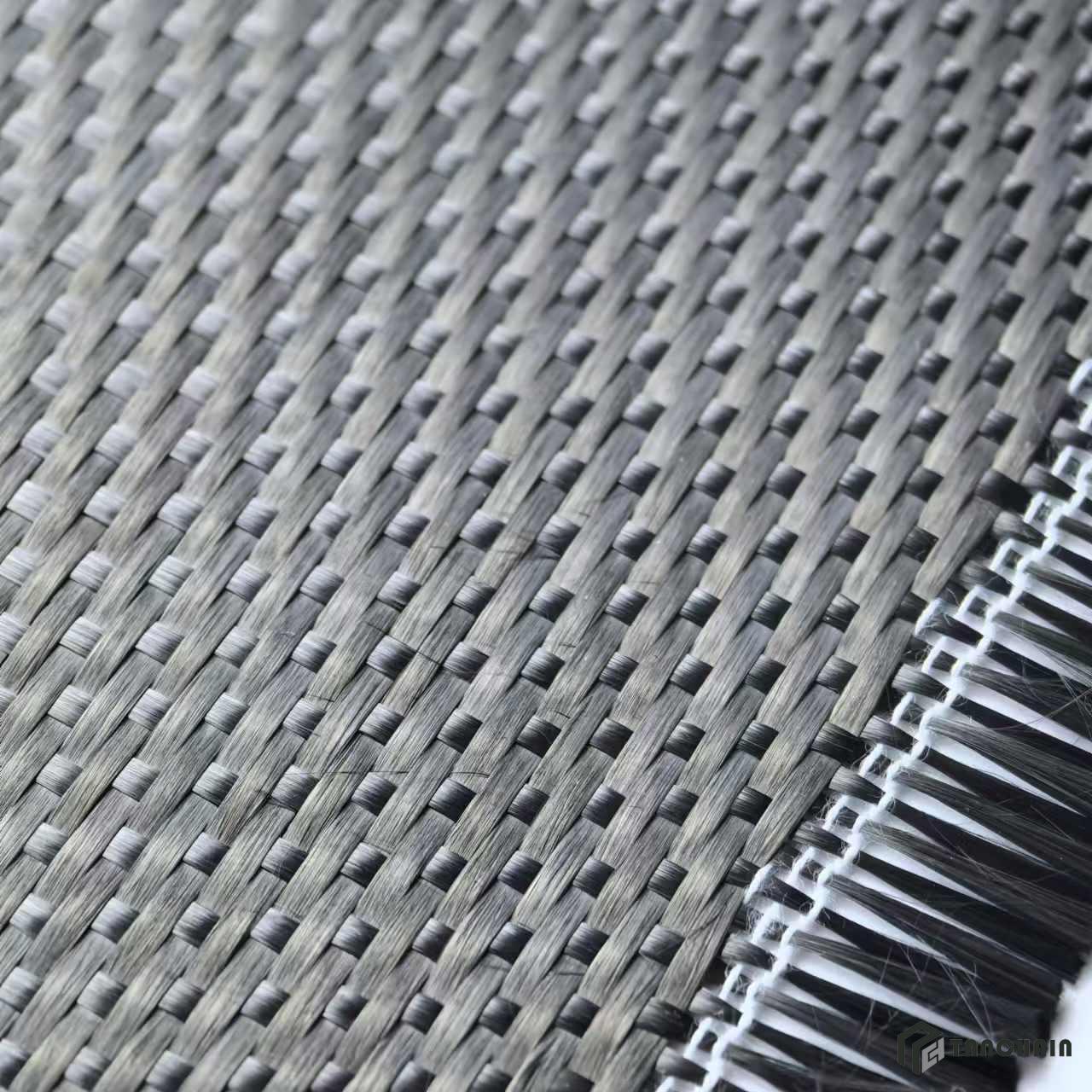

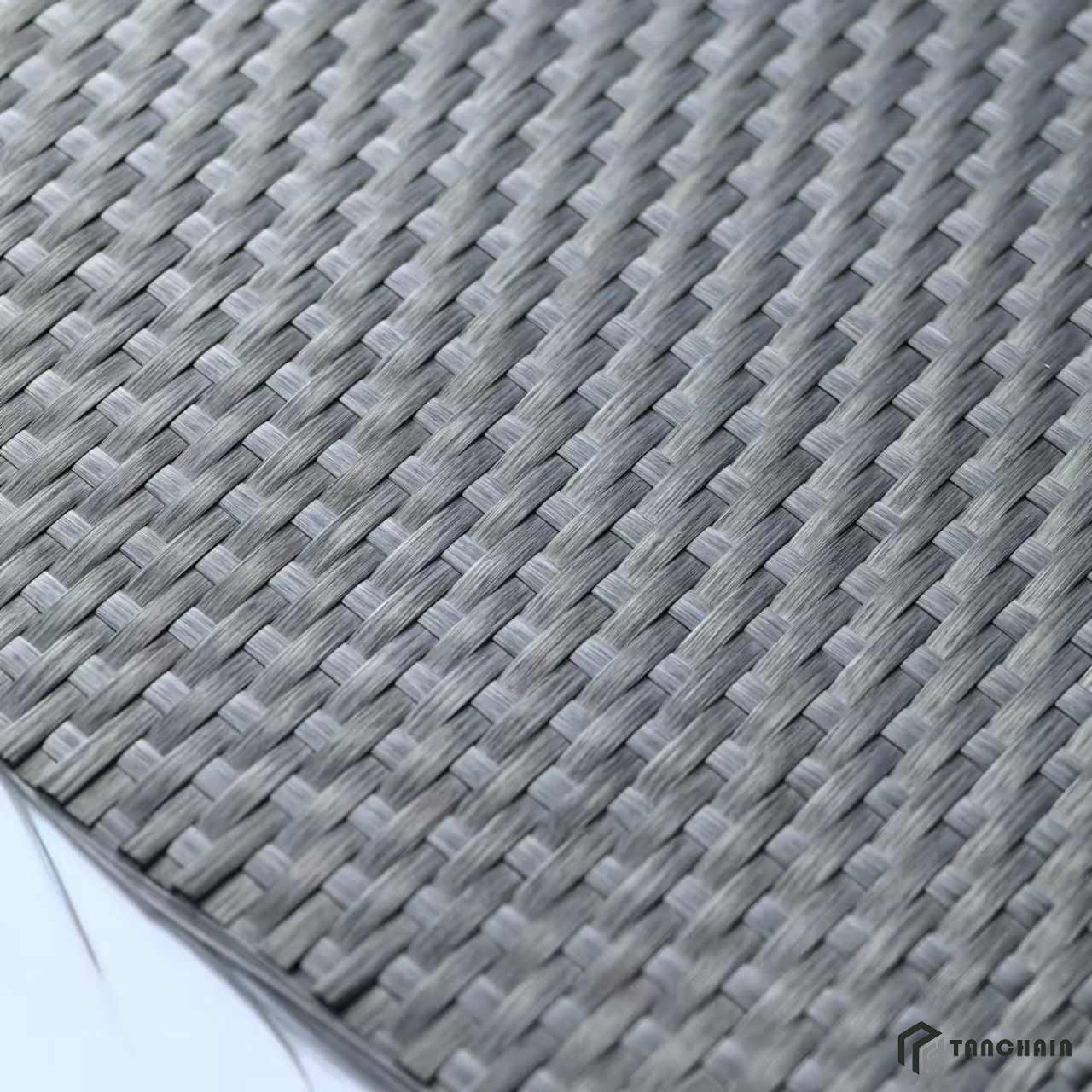

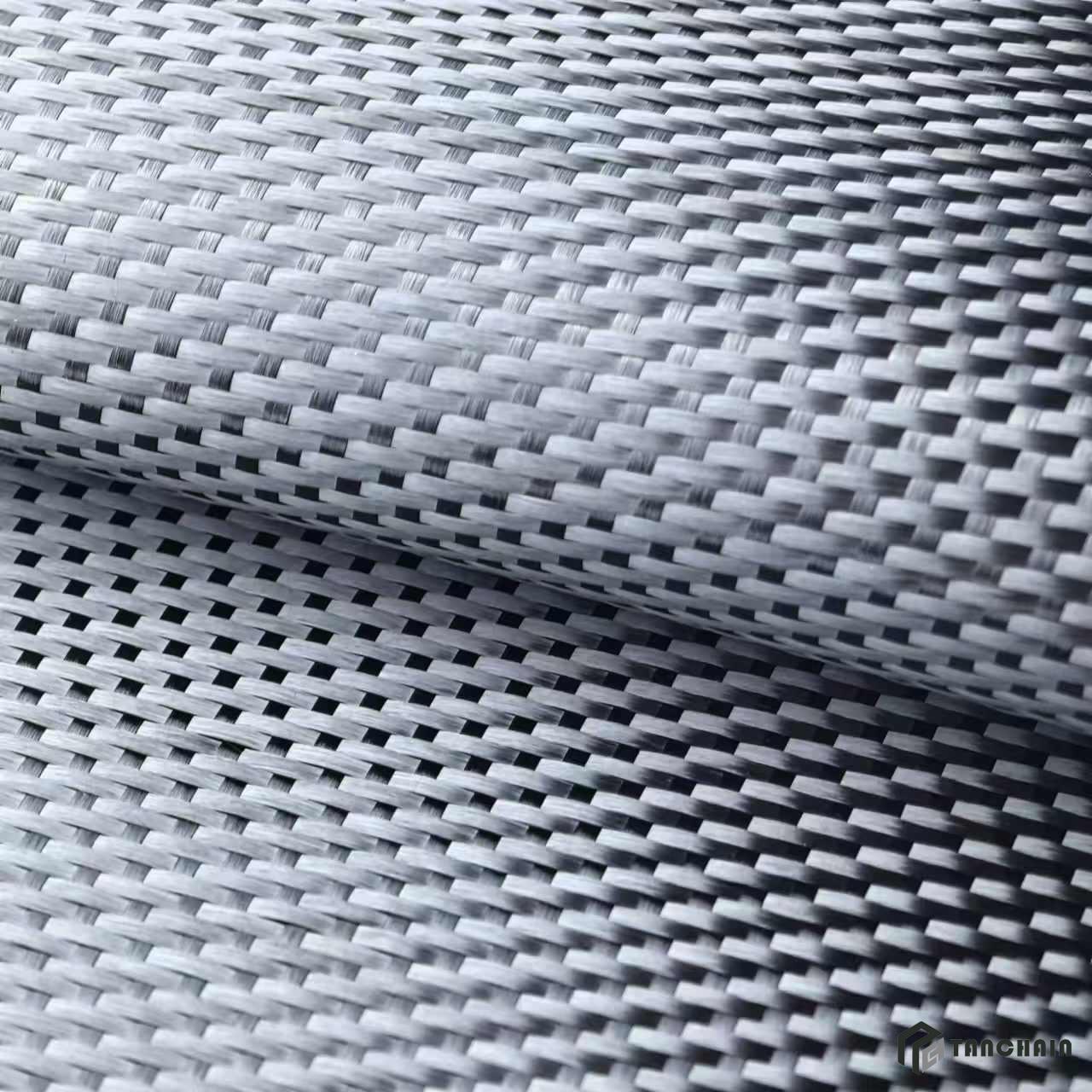

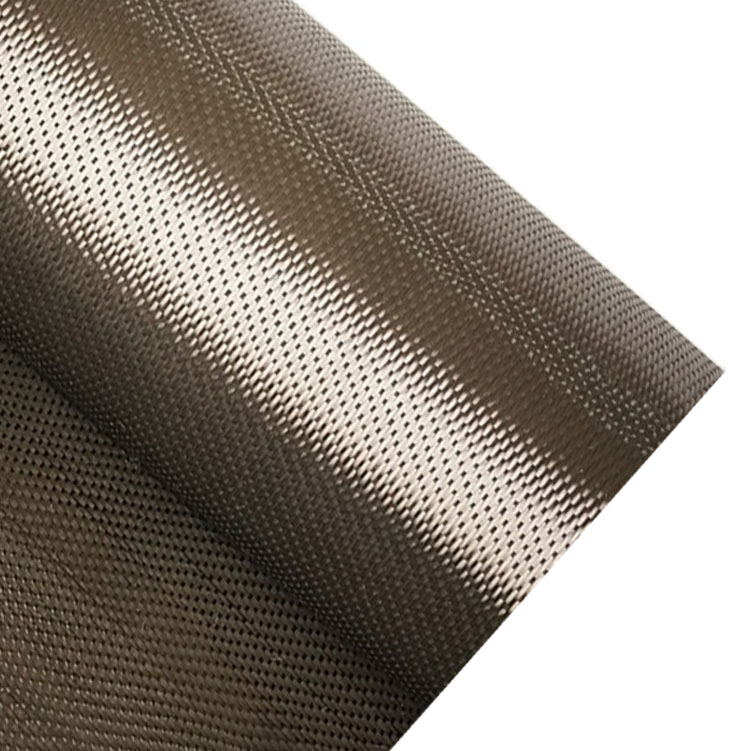

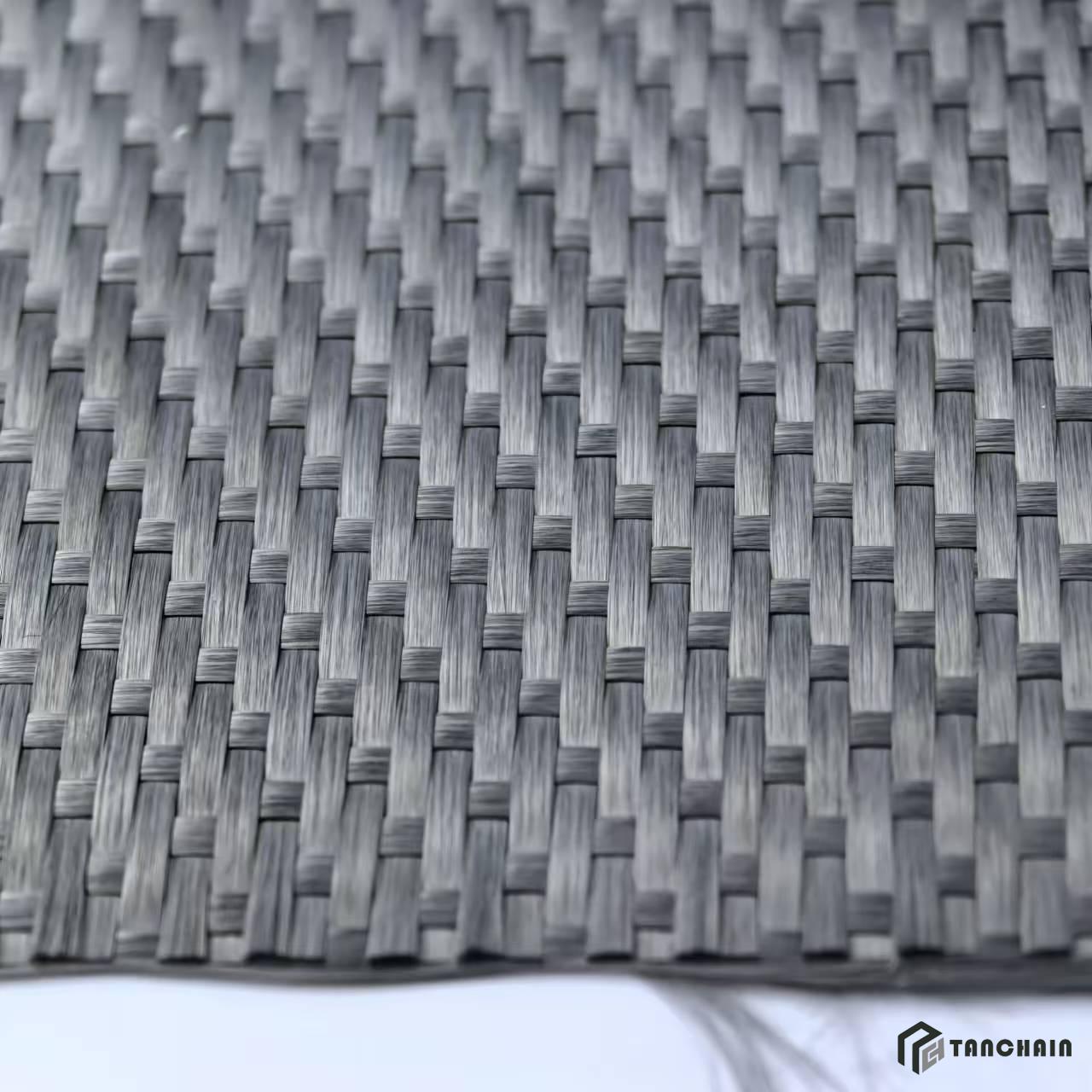

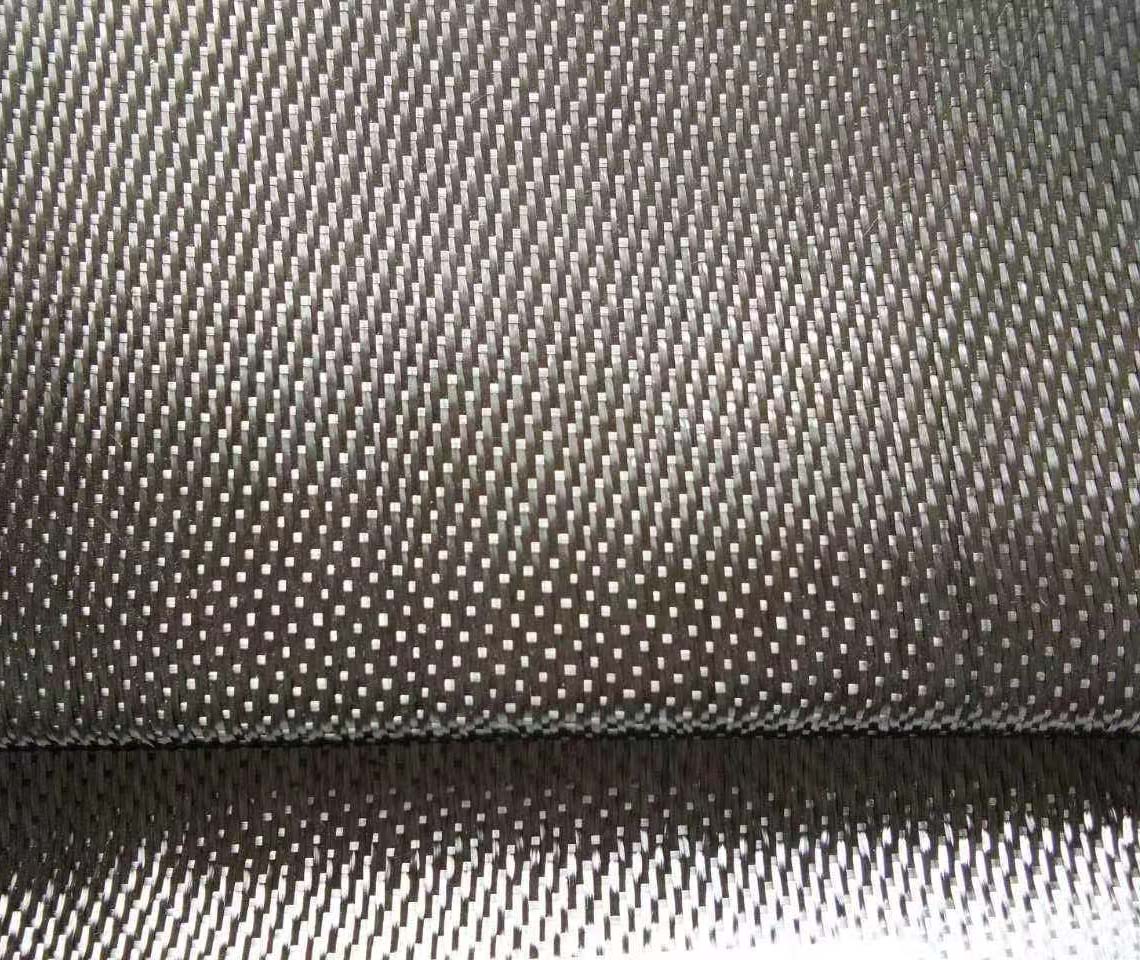

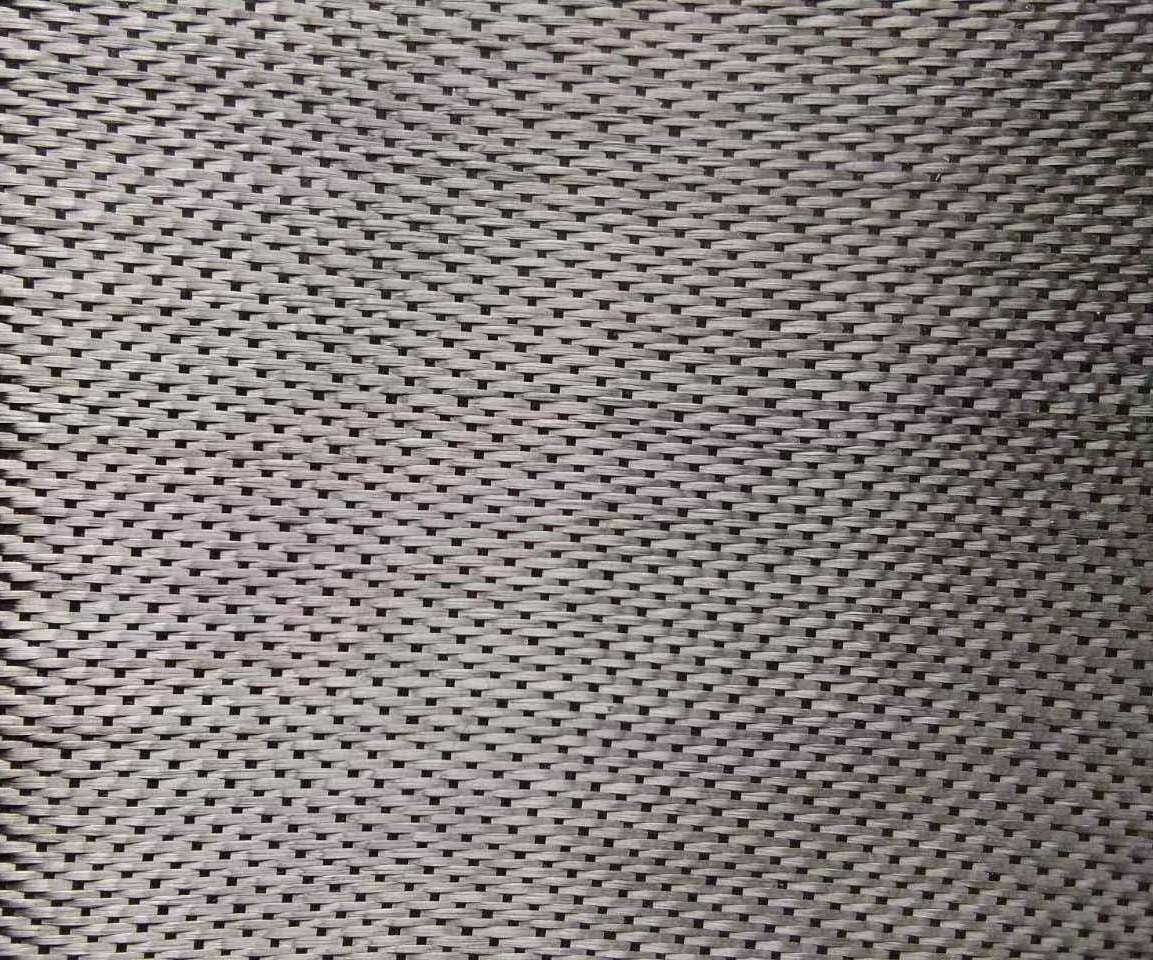

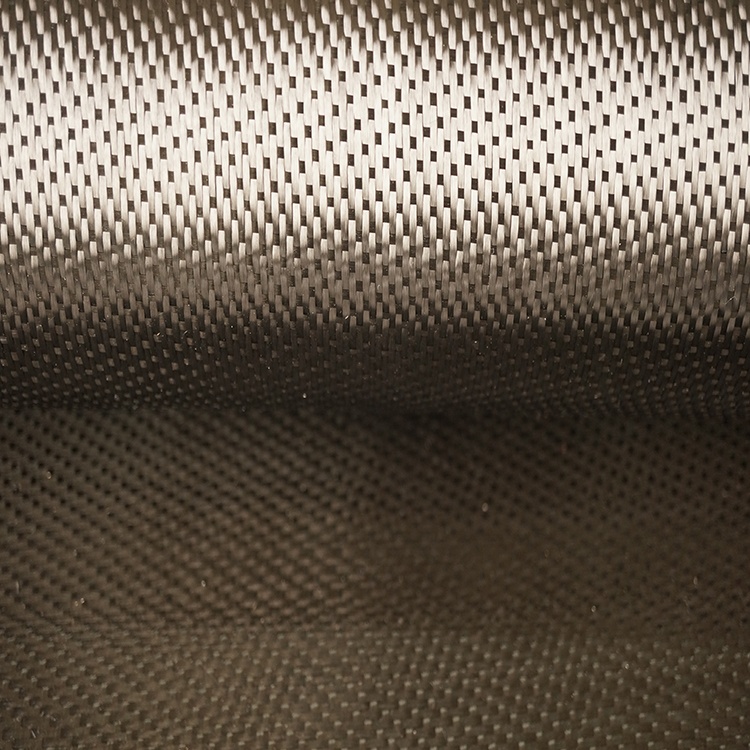

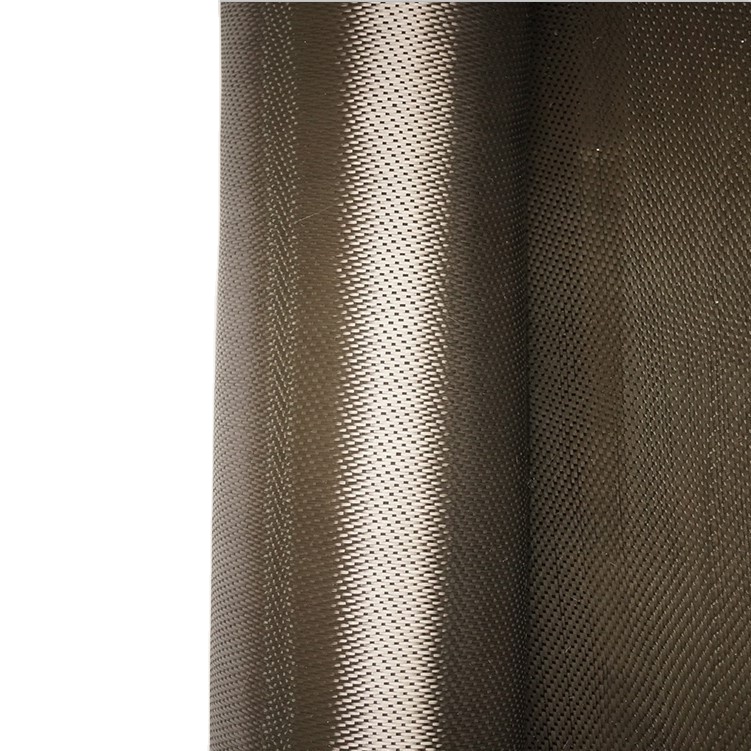

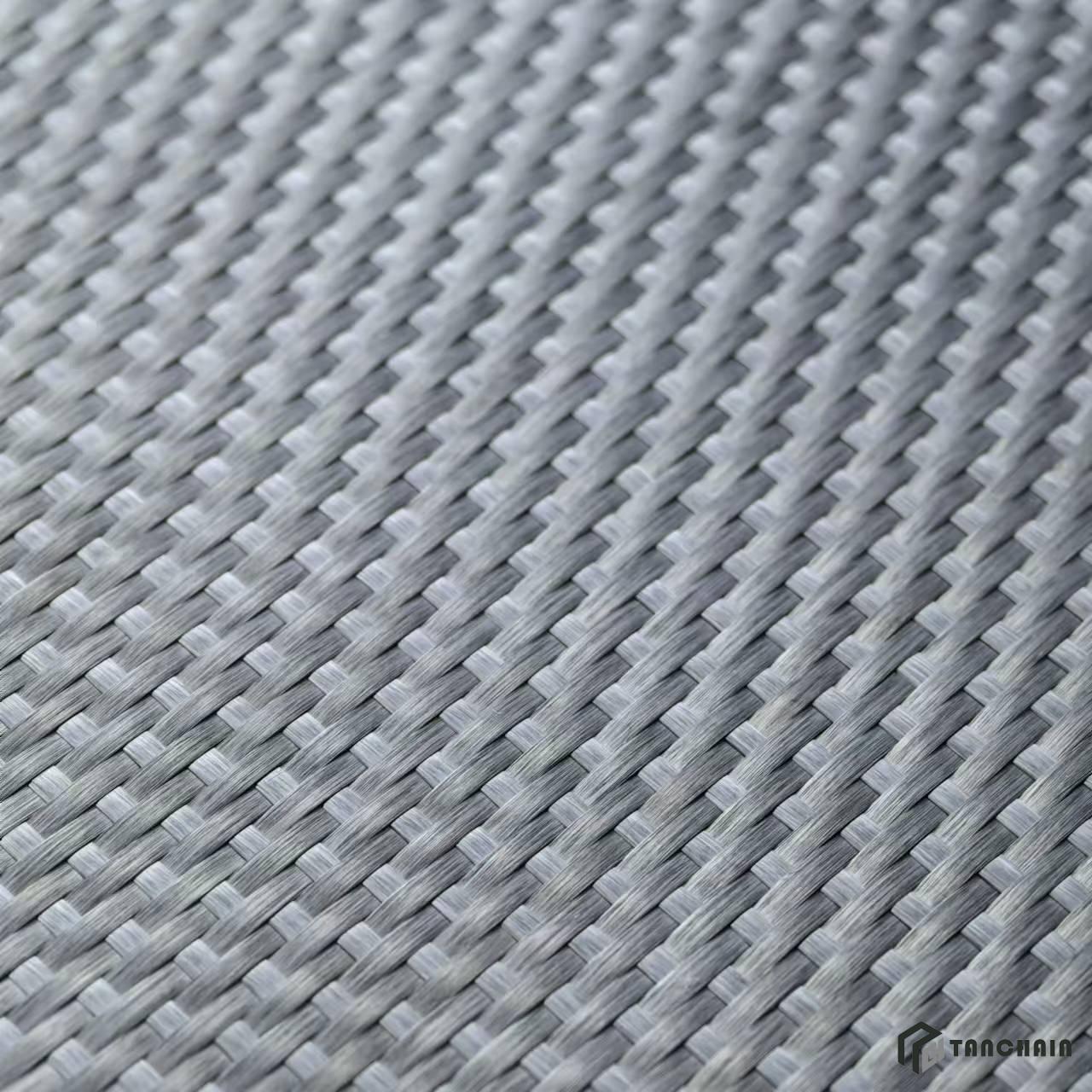

Satin carbon fiber fabric is a pattern formed by the interlacing of warp and weft yarns during the weaving process. The warp and weft yarns are interlaced less frequently than twill, independent and discontinuous, basically no intersections are seen, there are longer warp/weft yarns covering the surface of the fabric, and there are at least five warp and weft yarns in a complete weave, so the texture Soft and delicate, the surface is smooth and even, full of luster, looks like satin, more comfortable, the reverse side has a longer weft or warp covering the surface, but because the weft density is much higher than the warp density, the reverse side is not as symmetrical as the front side, and the gloss is It is also poor, and the fastness is also the worst. Due to the long warp or weft floating on the surface of the fabric, it is easy to be scratched during dyeing and finishing, and it is easy to fuzz over time. It has the longest float line, the smallest bending resistance, the softest hand feel, is heavier than plain and twill fabrics, and has strong abrasion resistance.



Carbon fiber is a special fiber with carbon content above 95% which based as PAN produced through pre-oxidation, carbonization and graphitization. It's density is less than 1/4 of steel while strength is 20 times if steel. It not only has characteristics of carbon material but also has workability,flexibility of textile fibers.
1)Suface coating after epoxy glue will be fine,we often cut the fabric by electric scissor.

2) Packing:100m-220m/roll,MOQ:1000m of each color for large,samples can be negoticated.
3)We can customize the carbon fabric length,packing,width,density to satisfy each customer's requirements.





Product Details
Content: 100% carbon fiber
Specification : 1k-12k, 120-640gsm
Color: Black
width:

10-150cm, customized width is available

Feature:

Fireproof, high temperature resistance, high strength, high modulus, light weight, fatigue and corrosion resistance, low thermal expansion, high impact resistance, conductivity

MOQ: 100m
Meet standard : AATCC/ASTM, EN, ISO, GB, AS
Application : Aerospace, auto parts, sports equipment, building reinforcements, decorations.
