Quick Details

Material:

 100% para aramid Yarn Count: 40s3, 30s3, 20s3, 36s3 etc.
Pattern:  Dyed Weight (g/ball): 200g /cone
Model Number:
TCST011-1 Place of Origin: Shanghai, China (Mainland)
Yarn Type: Spun Brand Name: Tanchain
Technics: Gassed Thread: 40S3


Description

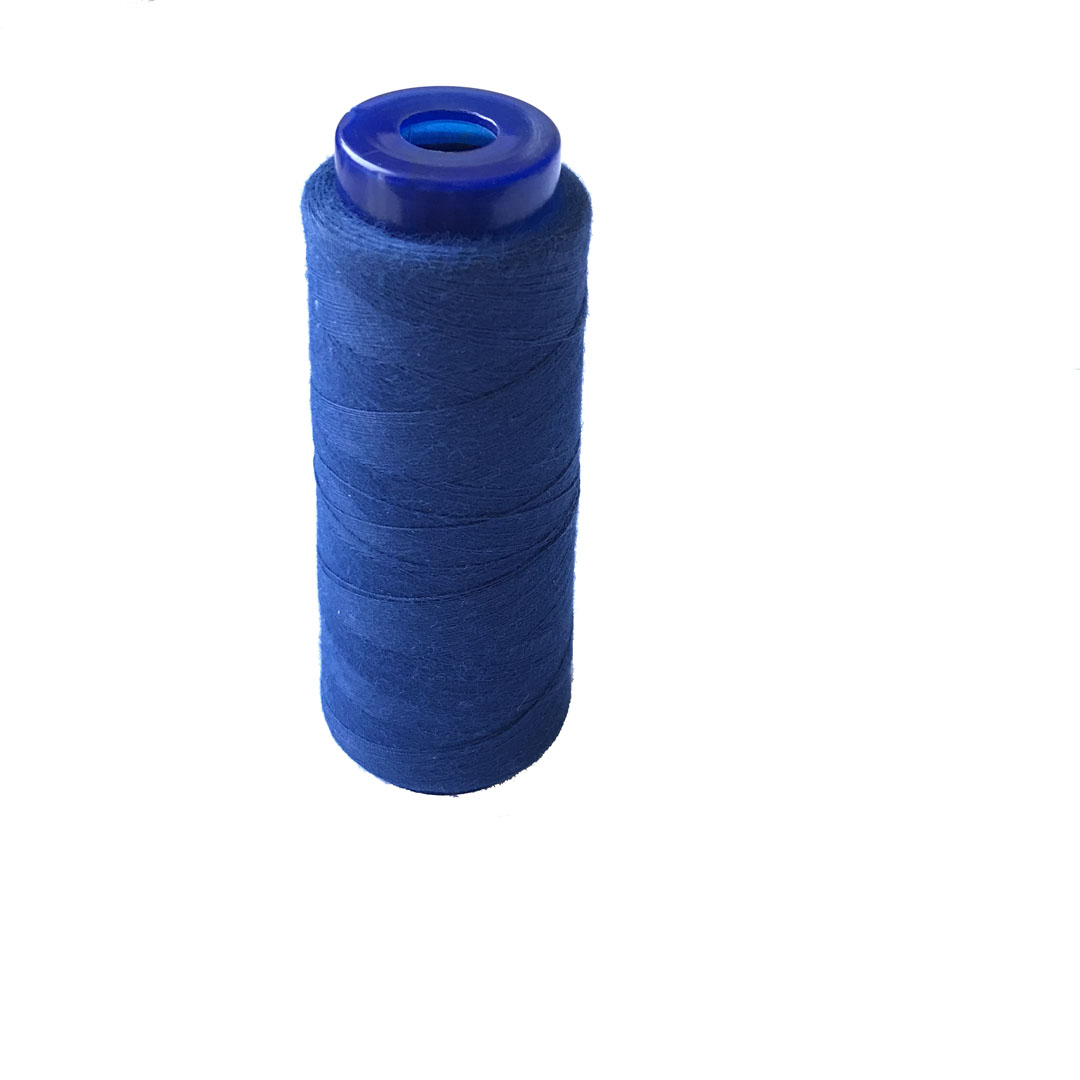

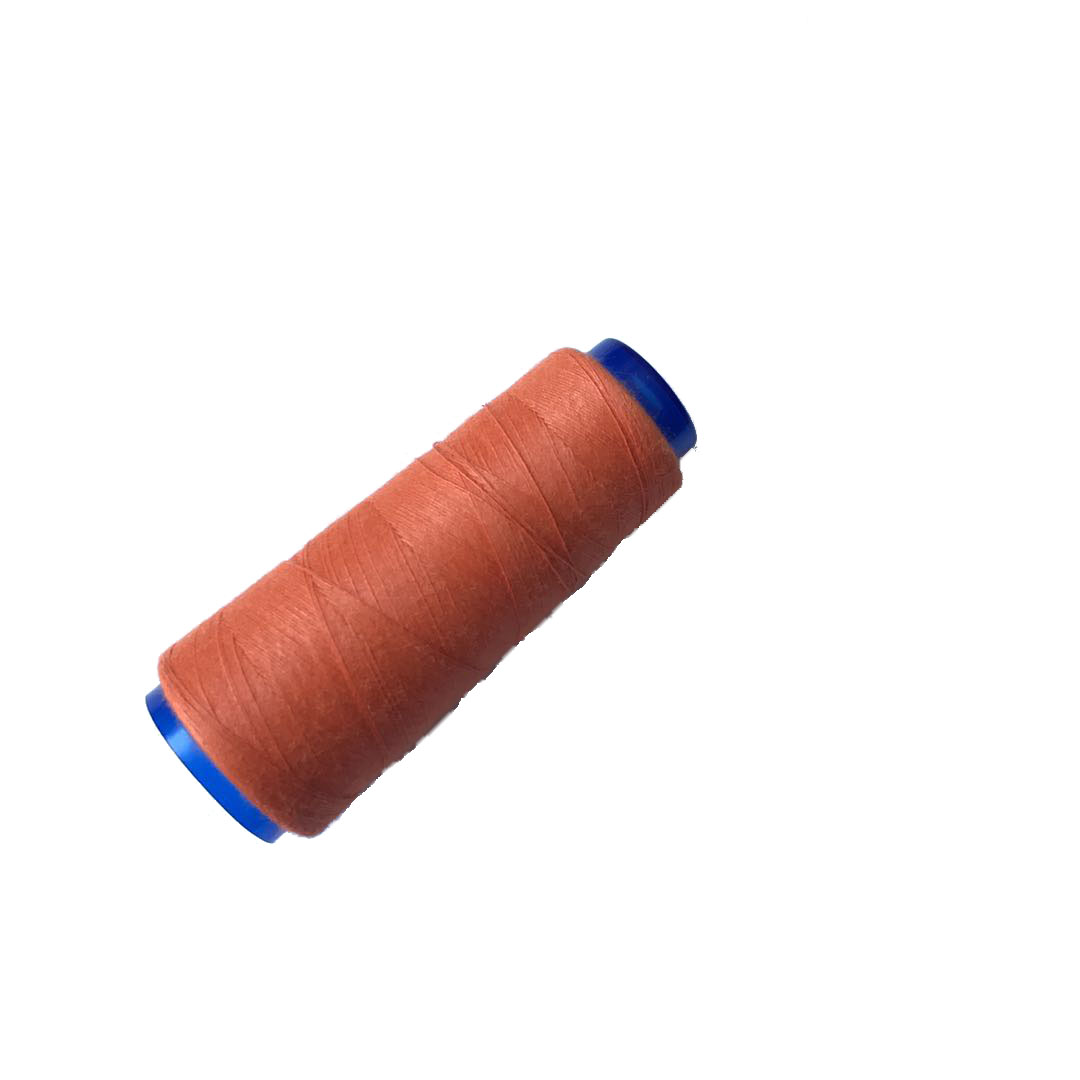

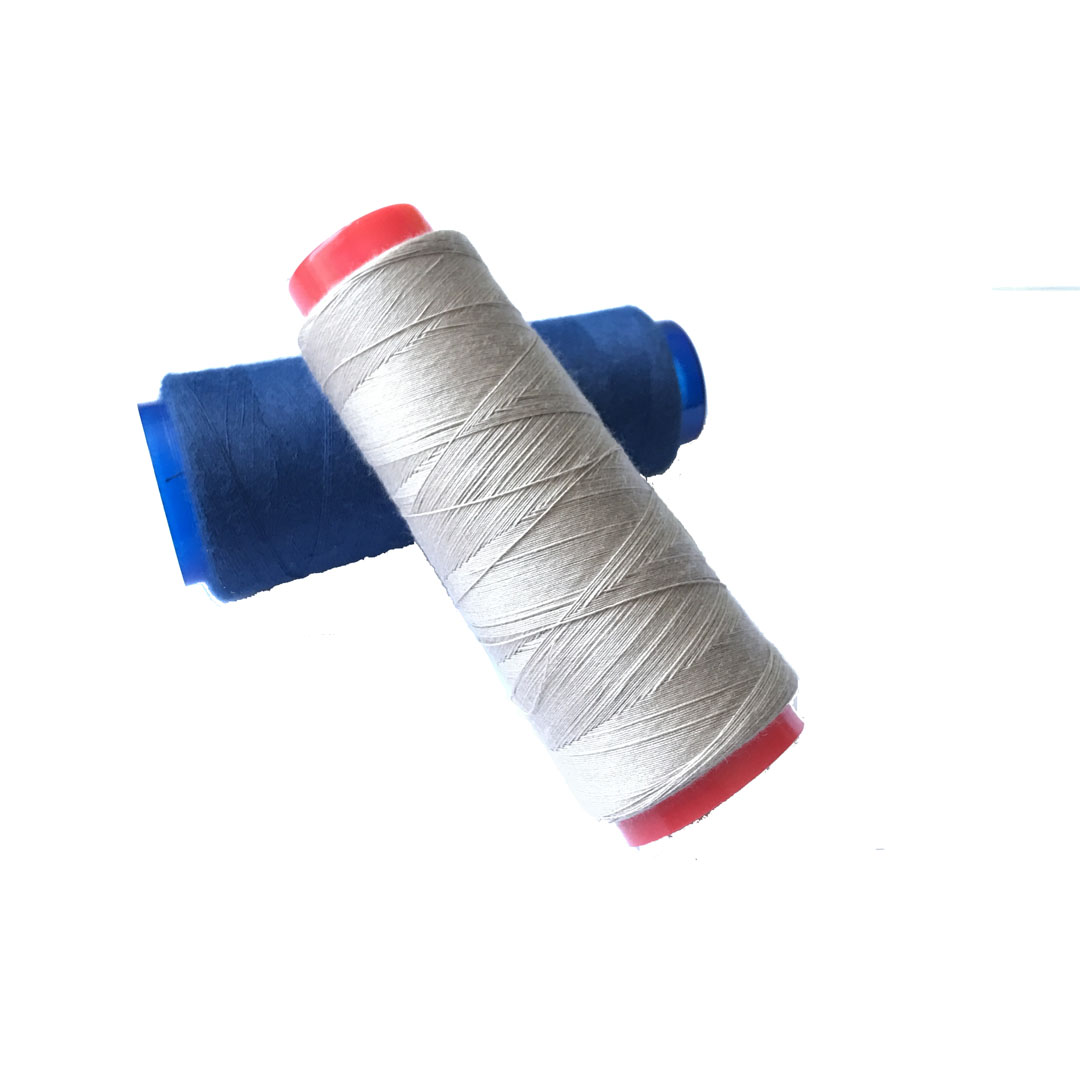

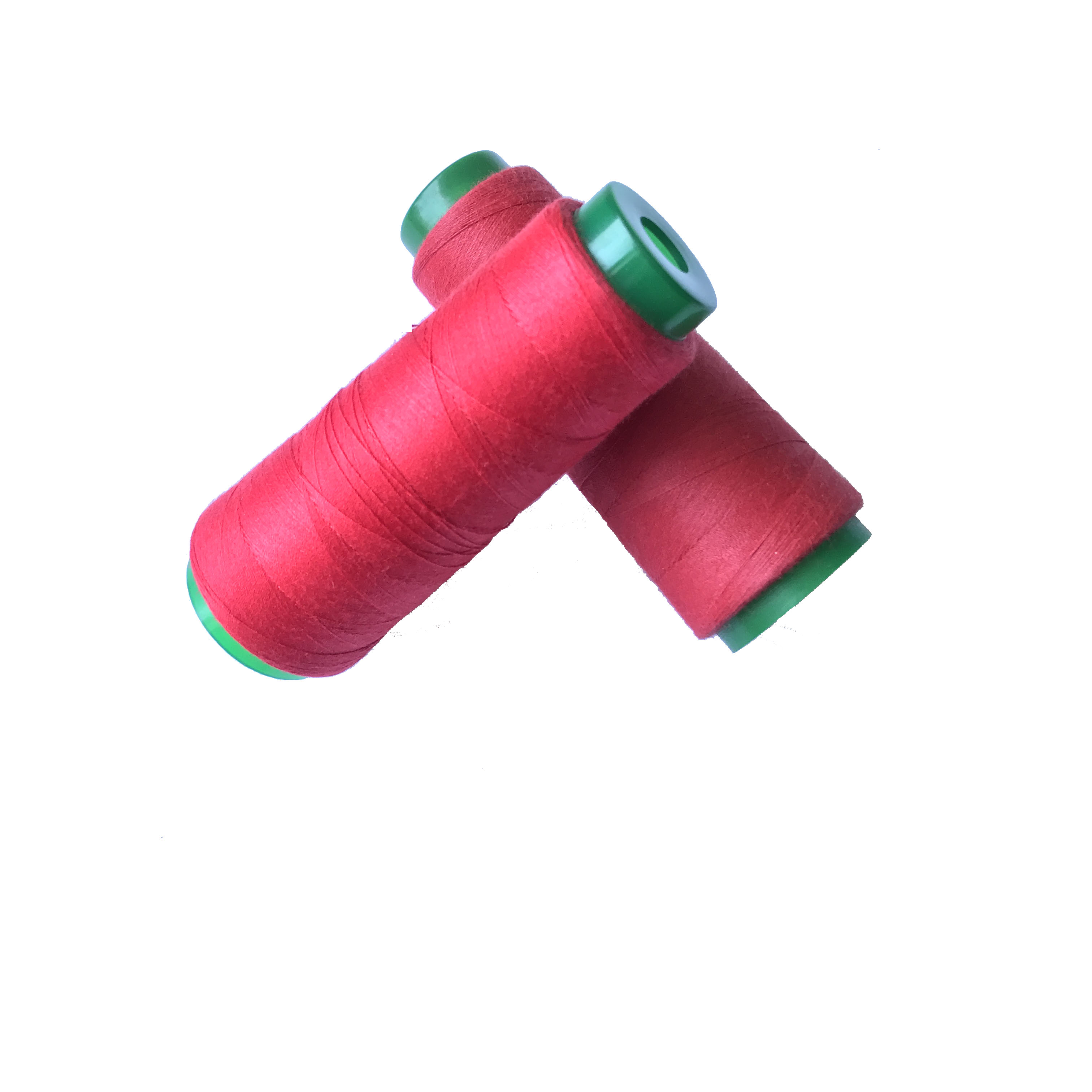

Para Aramid Sewing Thread

●Excellent flame retardant properties

The limiting oxygen index(LOI) is over 29%. start to carbonise and decompose above 500℃

●Chemical stability

Has a high resistance to weak acid, weak base and the majority of organic solvents

●Good textile properties

High resistance to breakage and its high break elongation ratio guaranteed the end product with high intensity, good product longevity, and better tolerance to injection


●No Melt Drip properties

Flame resistant with self-extinguish nature and non-melt drip characteristic.



●High Strength and low weight

Due to the high hydrogen bonds, the strength of Taparan®para aramid can reach up to above 28g/D.Its specific strength is 5-6 times that of steel wire , its specific modulus is 2-3 times that of steel wire or glass fiber , and its flexibility is 2 times that of steel wire while the weight is only 1/5 that of the steel wire.


Para-aramid sewing thread technical data
Article: 100% para aramid
Yarn count(Ne):  20S2
Yarn count(tex):  60
Breaking Strength(CN): 4000
Tenacity(CN/dtex): 70
Elongation:
5%





Product Details
Content: 100% Para Aramid
Specification : 40s3, 200g/cone, other thread sizes 36s3 20s3, 30s3, 20s1, 20s2 etc. are available and customized thread size is acceptable
Length: 4500 meters per cone

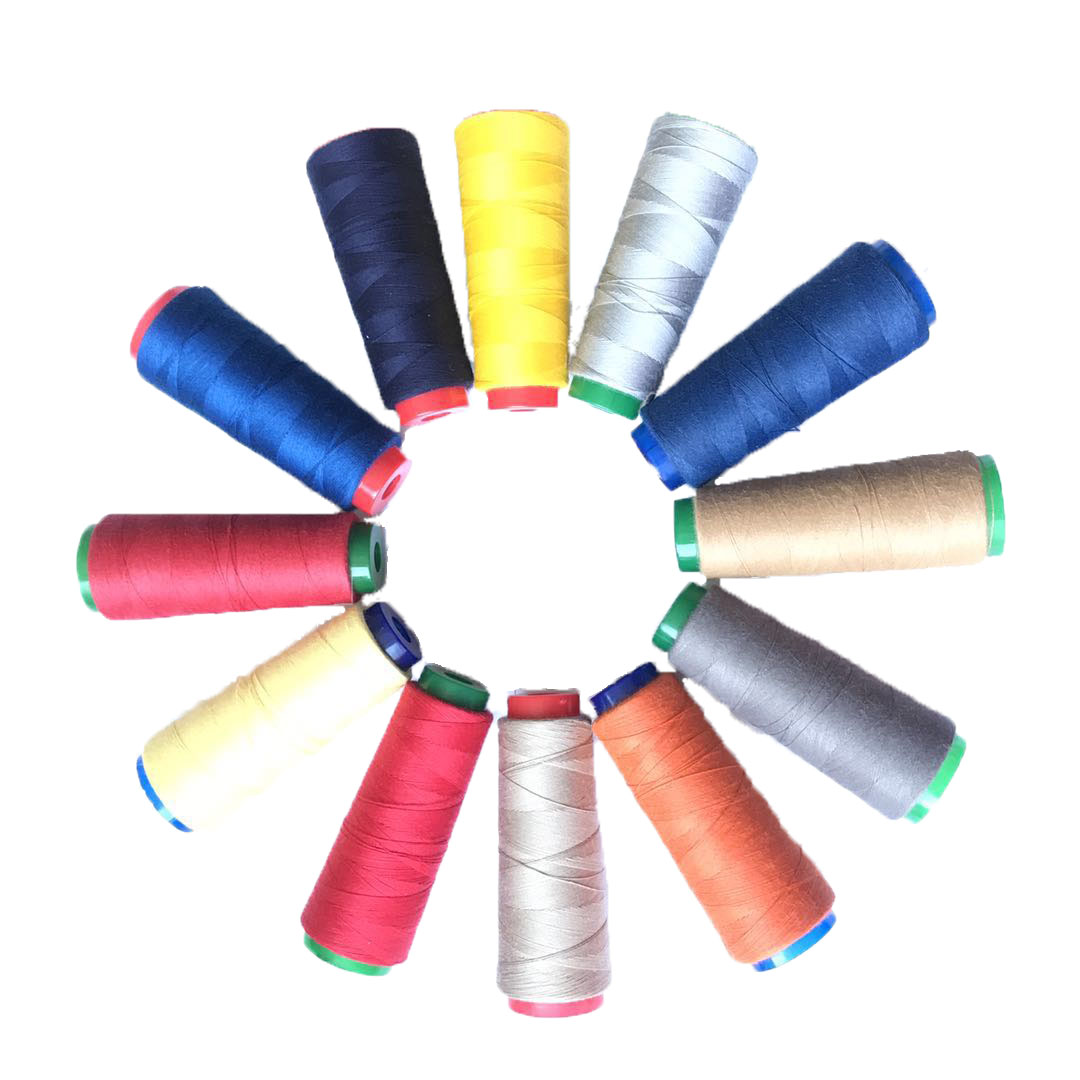

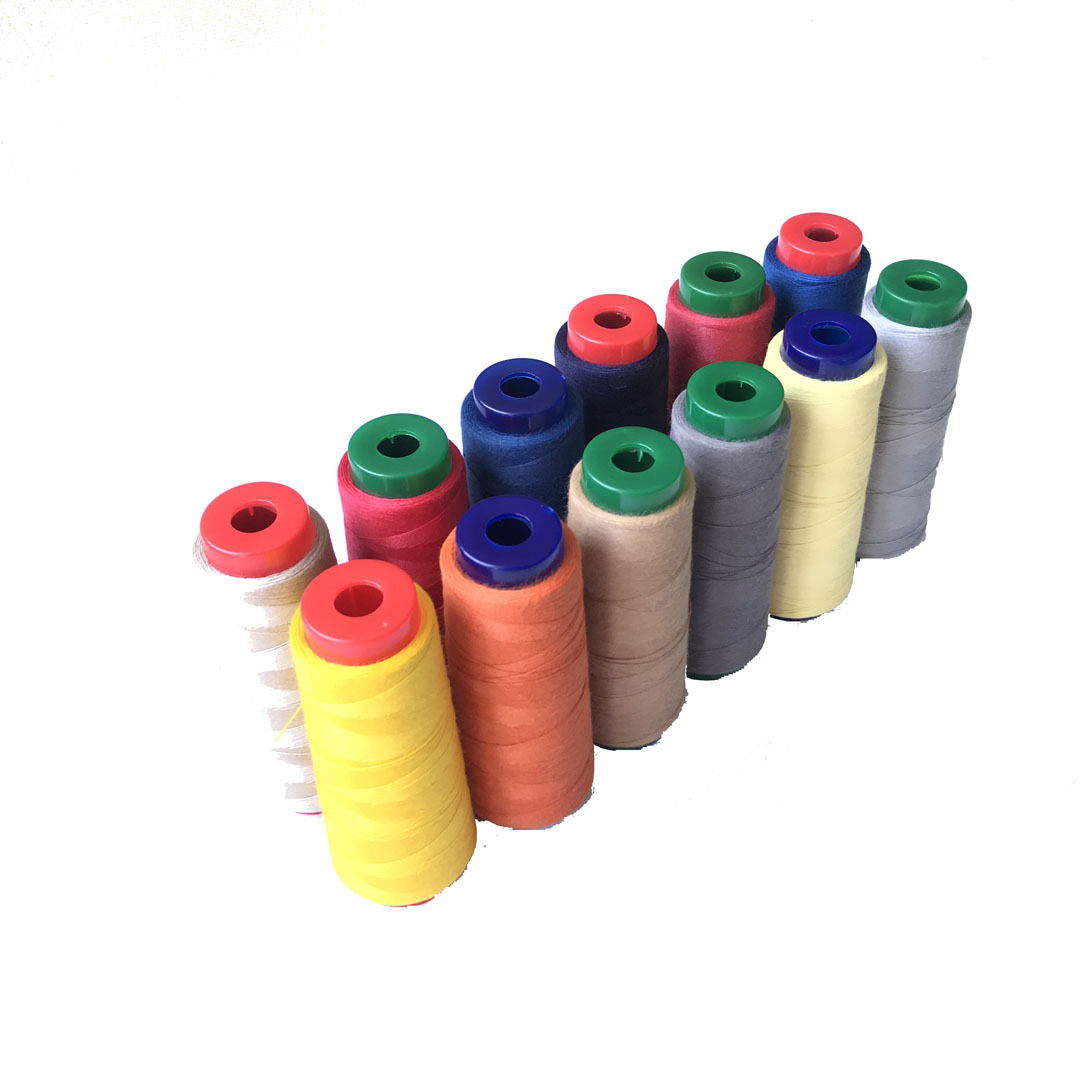

Color: Cream, Black, Grey, Blue, Orange, Khaki, Customized color is available
Use:

Sewing, Cross Stitch, Embroidey,Hand Knitting, Weaving

Feature:

Low Shrinkage, High Temperature Resistant, Chemical-Resistant, Abrasion-Resistant, High Tenacity, flame retardant

MOQ: 10 kilograms
Meet standard : AATCC/ASTM, EN, ISO, GB, AS
Thread property:




1. The sewing thread made of para-aramid fiber will not melt, there is no difference in dry and wet tensile strength, and it can be used normally in the range of -200~250℃.

2. It is self-extinguishing and provides very good chemical and biological resistance, para-aramid has excellent high toughness, high abrasion resistance, high cutting resistance, high temperature resistance, flame retardant properties

Application : Used for stitching protective clothing, filter bags, shoes, firefighter uniform。

Company Information

Shanghai Tanchain New Material Technology Co., Ltd is a high-tech enterprise focused on developing, producing, and marketing  technical textiles products and composite materials, for the industrial, transportation, automotive, and protective industries. We have more than 5 years' experience in producing innovative products for extremely protective and labor protective applications,and with our great advantage in sourcing and technology, Tanchain has grown to be one of the leading suppliers in Chinese technical textiles market. We have a complete industrial chain and a strict quality management system.

Shanghai Office



Tanchain carefully selected raw material suppliers from dozens of first-class raw material suppliers domestically  and overseas,  and has signed  long-term supply agreements, which ensures that we have large quantities of the best quality raw materials on a timely basis, and it is also a fundamental guarantee of the quality of our company's products.

factory in Jiangsu


We have built high-standard modern factories  domestically and overseas, and have  hired managers and technicians with first-class work experience in domestic and foreign companies, so as to ensure that our products have our own technical advantages and market competitiveness.

Factory in Jiangsu



Good products allow us to obtain a large number of customers in domestic and overseas markets, and these high-quality customers are our company's valuable resources. Excellent customer groups give us information feedback while improving the function and quality of our products.



The quality control department has been established since the beginning  of the company, and the chairman of the company attaches great importance to quality control. We have invested a huge amount of money to ensure the quality of products, which is the basis for our long-term foothold in the market.   The factory manages and controls the whole process  from raw materials into the factory, production and processing to finished products, and each process follows  scientific norms in order for continuous  improvement.

Factory in Jiangsu


Our mission is to be recognized as a premier supplier to the markets we serve by providing quality yarns, fabrics and other textile products to satisfy the needs of our customers. Our mission will be accomplished through excellence in customer service, sales and manufacturing,  and supported by teamwork of all associates. We will continue our tradition of honesty, fairness and integrity in the relationships with our customers, associates, community and stakeholders.
