Product Properties

  1. Excellent flame retardant properties, this yarn made from 90% pre-oxidized panox and 10% FR Viscose, it has very good flame retardance property, the limited oxygen index is more than 35%

  2. No melt, no drip properties, flame resistant with self-extinguish nature and non-melt drip characteristic

  3. Excellent high temperature resistance, can be used continuously in a very wide temperature range from -196℃ to 300℃, it has no decomposing or melting at 600℃

  4. High strength, no difference in tensile strength when wet or dry

  5. Chemical resistance, very good acid and alkali resistant

  6. electrical insulation

Technical Data


90% Panox, 10% FR Viscose Yarn Count: 20S2
Pattern:  Dyed Weight : 1.5kg/cone
Yarn Type:
Spun CV Strength: 7.55%
Breaking Strength: 10.1cN/TEX Breaking Elongation%: 9.96%
Breaking Strength(cN): 595.9 Breaking Elongation: 49.8mm
Technical Data


90% Panox, 10% FR VIscose
Pattern:  Dyed
Yarn Type:
Breaking Strength: 10.1CN/TEX
Breaking Strength(cN): 595.9
Yarn Count: 20S2
Weight : 1.5kg/cone
CV Strength: 7.55%
Breaking Elongation%: 9.96%
Breaking Elongation: 49.8mm

Product Description

    Pre-oxidized pan and FR viscose blended yarn is made up of FR viscose and panox fiber according to certain proportion blended, relative to the pure pre-oxidized pan yarns, improve the strength of yarn, enrich the color of yarn, yarn is improved the resistance to abrasion and wear characteristics of heat-resistant flame-retardant effect is better than that of FR viscose yarn at the same time.

    The main specifications include FR viscose fiber  / pre-oxidized fiber ratio of 10/90, 20/80, 30/70 and so on. The yarn count is 5, 10, 20, 32, 40 (single yarn and strand).

Product Details

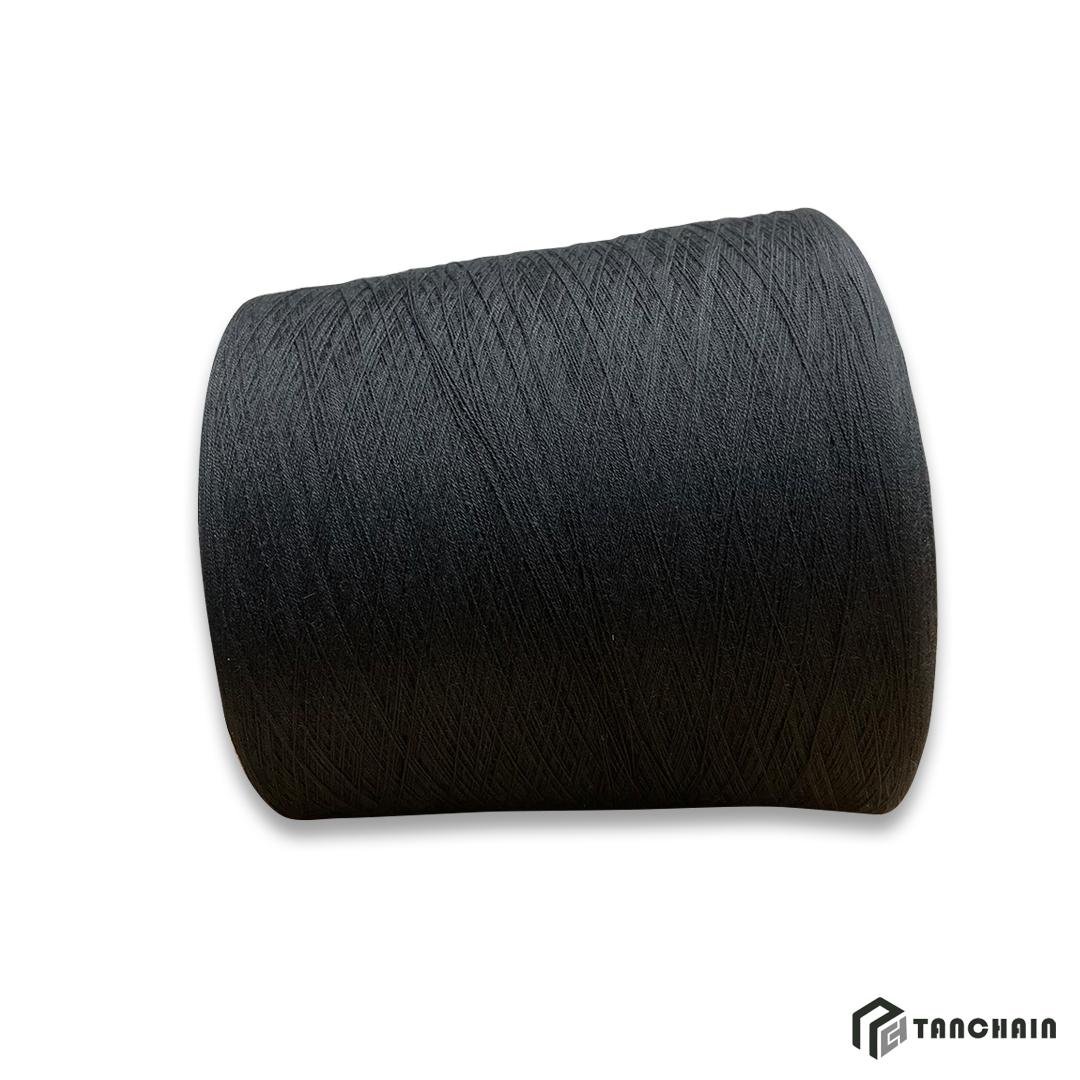

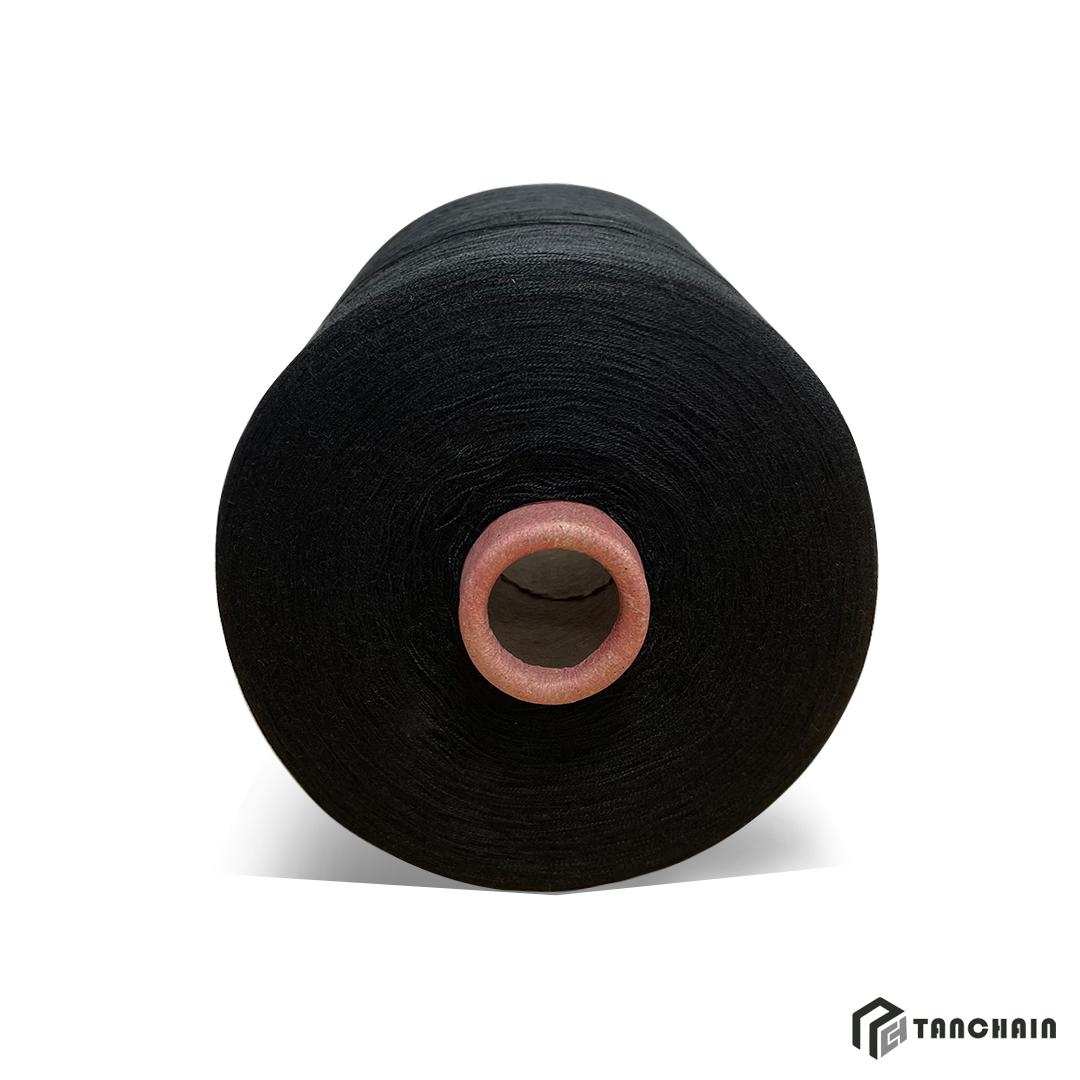

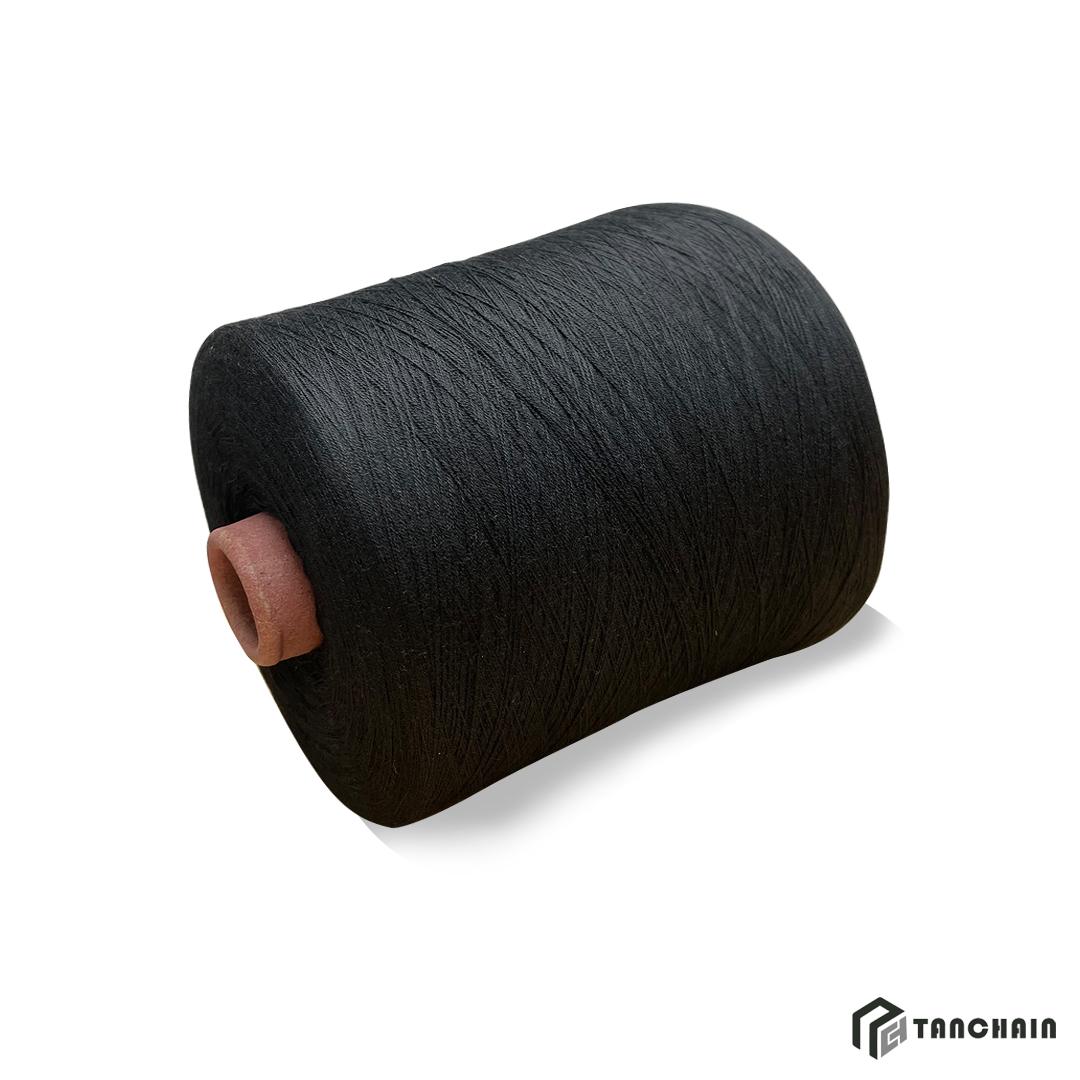

Content: 90% Panox, 10% FR Viscose
Specification : 20s/2, 1500g/cone, other yarn sizes 36s/3 20s/3, 30s/3, 20s/1, 20s/2 etc. are available and customized thread size is acceptable
Color: Black

Cross Stitch, Embroidey,Hand Knitting, Weaving


Low Shrinkage, High Temperature Resistant, Chemical-Resistant, Abrasion-Resistant, High Tenacity, flame retardant

MOQ: 10 kilograms
Meet standard : AATCC/ASTM, EN, ISO, GB, AS
Application : Used for protective clothing, gloves, PPE products, firefighter uniform, flame retardant curtains, fire blanket, Anti-fire gloves
